Focuses on the research, development, production and manufacturing of high-performance polymer pipes

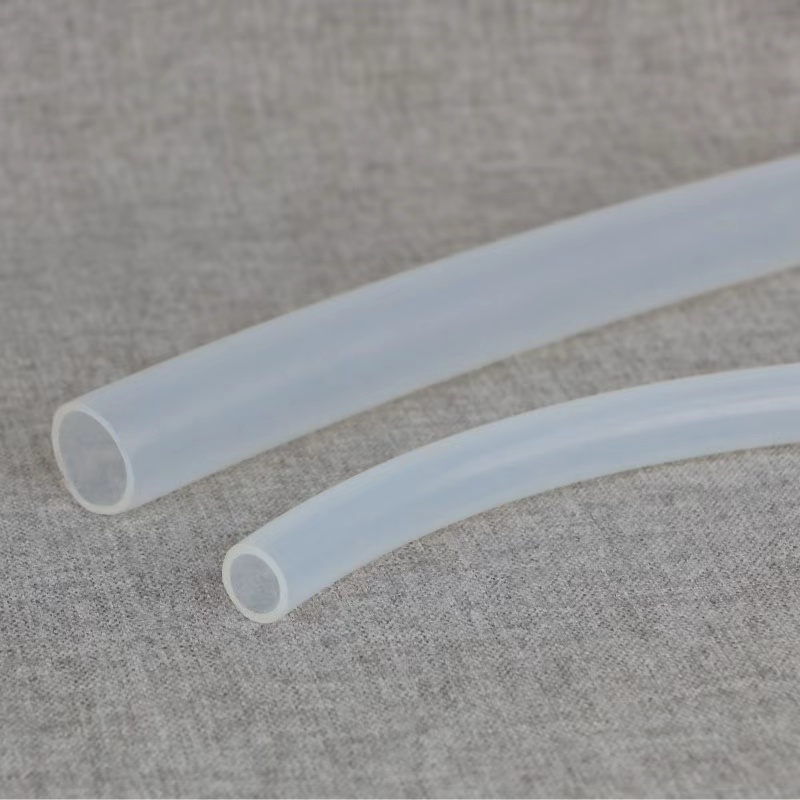

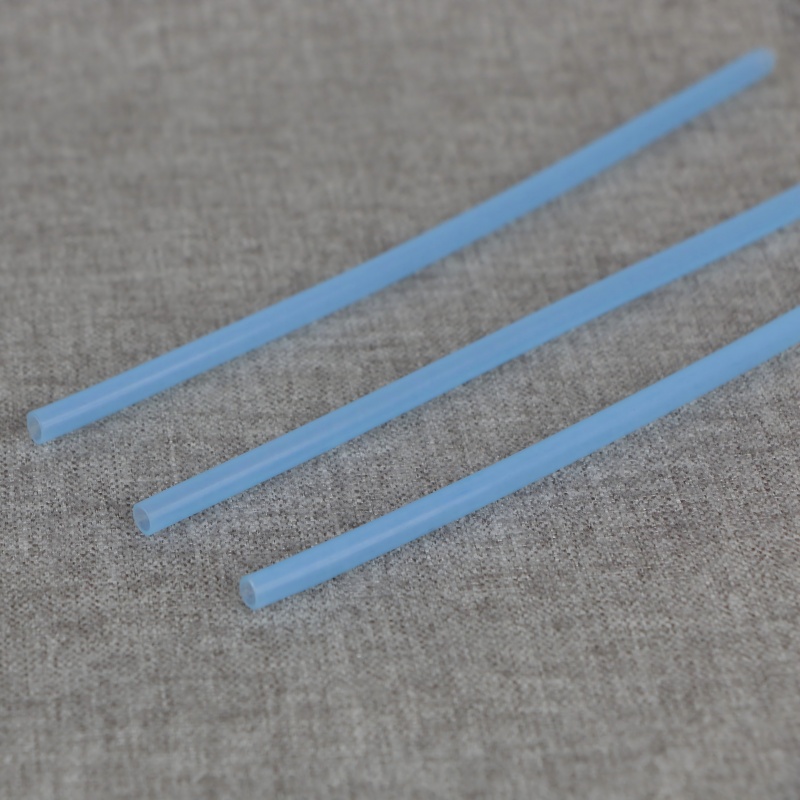

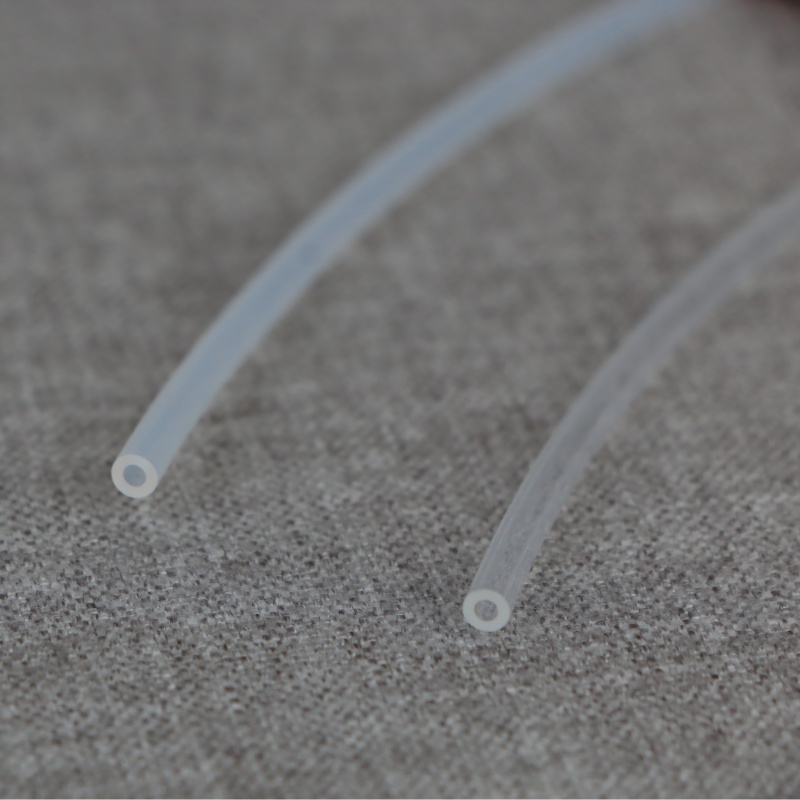

PTFE Tube

  • The basic parameters of Teflon insulating sleeves include excellent electrical properties and resistance to adhesion and corrosion. They can be widely applied in various fields such as electrical insulation, physical and chemical instruments, electronic communication, aerospace, automobiles, medical care, electric heating, etc., as well as in industries like machinery, electronics and electrical appliances, automobiles, aerospace, chemical engineering, and communication.
    · Withstand voltage: 150V-600V
    Operating temperature: 65℃+ 260℃ (Temperaturer: 105℃)
    Melting point: 327℃
    · Flame retardancy: VW-1
    Breakdown strength: 45KV/mm
    Color: transparent, black, blue, red, yellow, green, gray
Consult
Hotline+86 0512-57420512

Detailed introduction



            Model                               Inner Diameter                                       Outer Diameter (mm)  S                             Outer Diameter (mm)T                                             Outer Diameter (mm)I                                   Packaging

30

0.30 ± 0.08

0.80 0.08

0.76 ± 0.08

0.60 ± 0.10

305 Rice/Pate

28

0.38± 0.08

0.88± 0.08

0.84± 0.08

0.68± 0.10

305 Rice/Pate

26

0.46 ±0.08

0.96± 0.08

0.92 ± 0.08

0.76± 0.10

305 Rice/Pate

24

0.56 ± 0.08

1.1 0.08

1.06± 0.08

0.86± 0.10

305 Rice/Pate

23

0.66± 0.08

1.26±0.08

1.1 0.08

0.96± 0.10

305 Rice/Pate

22

0.71± 0.08

1.31± 0.08

1.21± 0.08

1.01±0.10

305 Rice/Pate

21

0.81± 0.08

1.41± 0.08

1.31± 0.08

1.11± 0.10

305 Rice/Pate

20

0.86± 0.08

1.66±0.08

1.46±0.08

1.16 ± 0.10

305 Rice/Pate

19

0.96± 0.10

1.76±0.10

1.56±0.10

1.26± 0.12

305 Rice/Pate

18

1.07±0.10

1.87± 0.10

1.67±0.10

1.37± 0.12

305 Rice/Pate

17

1.19 ± 0.10

1.99± 0.10

1.79 0.10

1.49± 0.12

305 Rice/Pate

16

1.34± 0.10

2.14 ± 0.10

1.94± 0.10

1.64± 0.14

305 Rice/Pate

15

1.50± 0.12

2.30 ± 0.12

2.10 ± 0.14

1.80± 0.14

153 Rice/Pate

14

1.68 0.12

2.48± 0.12

2.28± 0.14

2.08± 0.14

153 Rice/Pate

13

1.93±0.12

2.73± 0.12

2.53± 0.14

2.33± 0.16

153 Rice/Pate

12

2.16 ± 0.14

2.96 ± 0.14

2.77 ± 0.16

2.56 ± 0.16

153 Rice/Pate

11

2.41± 0.14

3.21± 0.14

     3.01± 0.16

2.81± 0.16

153 Rice/Pate

10

2.69 ± 0.14

3.49 ± 0.14

3.29 ± 0.16

3.09 ± 0.16

153 Rice/Pate

9

3.00 ± 0.16

4.00 ± 0.16

3.76 ± 0.18

3.40 ± 0.18

100 Rice/Pate

8

3.38± 0.16

4.38± 0.16

4.14 ± 0.18

3.78± 0 18

100 Rice/Pate

7

3.76 ± 0.16

4.76 ± 0.16

4.52 ± 0.18

4.16 ± 0.18

100 Rice/Pate

6

4.22 ± 0.18

5.22 ± 0.18

4.98± 0.20

4.72 ± 0.18

100 Rice/Pate

5

4.72 ± 0.18

5.72 ± 0.18

5.48± 0.20

5.22 ± 0.20

100 Rice/Pate

4

5.28± 0.20

6.28± 0.20

6.04 ± 0.20

5.78± 0.20

100 Rice/Pate

3

5.94 ± 0.20

6.94± 0.20

6.70 ± 0.20

6.44 ± 0.20

100 Rice/Pate

2

6.68± 0.20

7.68± 0.20

7.44 ± 0.20

7.18±0.20

100 Rice/Pateψ


7.46 ± 0.20

8.46 ± 0.20

8.22 0.20

7.96± 0.20

100 Rice/Pate


8.38 0.20

9.38± 0.20

9.14 ± 0.20

8.88± 0.20

100 Rice/Pate
